Press Information & Overview

VERSATILE & EFFECTIVE SOLUTION, 600T STANDARD MECHANICAL PRESS WITH MAXIMIZED WORKING AREA & SHORT DELIVERY

As a leading North American press manufacturer we are aware of the needs of the industry and our customers.

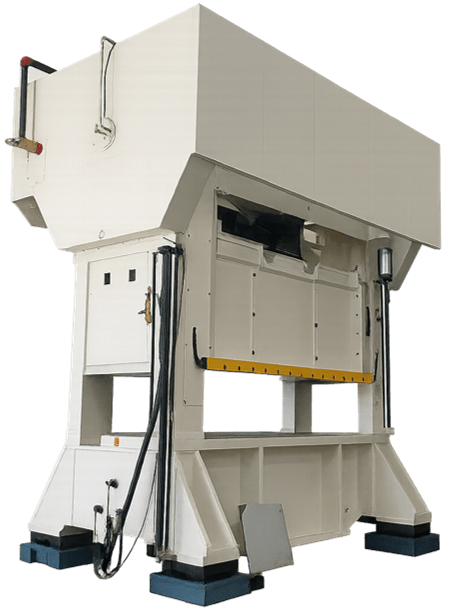

The Eagle SC2-600T-144-72 Standard Model is a straight side crankshaft mechanical press that offers a complete solution for todays industry requirements, with several optional items available, this Press is ready for anything!.

Request More Information

MID Tonnage & Large Bed

Based on our most robust designs, the 600T Standard Mechanical Press offers uncompromising quality and resilience at a lower cost and a quicker delivery.
With a Bolster and Slide area of 144″ x 72″ Eagle’s Standard 600T stands out from any other press in the market in the mid tonnage range.

Drive Type: Crank Drive
Stroke of the slide: 14 inch
Shut Height Over Bolster: 36 inch
Window Opening: 51 inch x 25 inch
Floor to T.O.P. height: 247 in (Approx.)
Total Press height: 286 in (Approx.)
Rated Distance A.B.D.C: 0.5 inch
Slide Adjustment: 12 inch
Main Motor Power: 100 HP
Voltage/Phase/Cycle: 480V/3/60Hz

Download PDF Spec Sheet

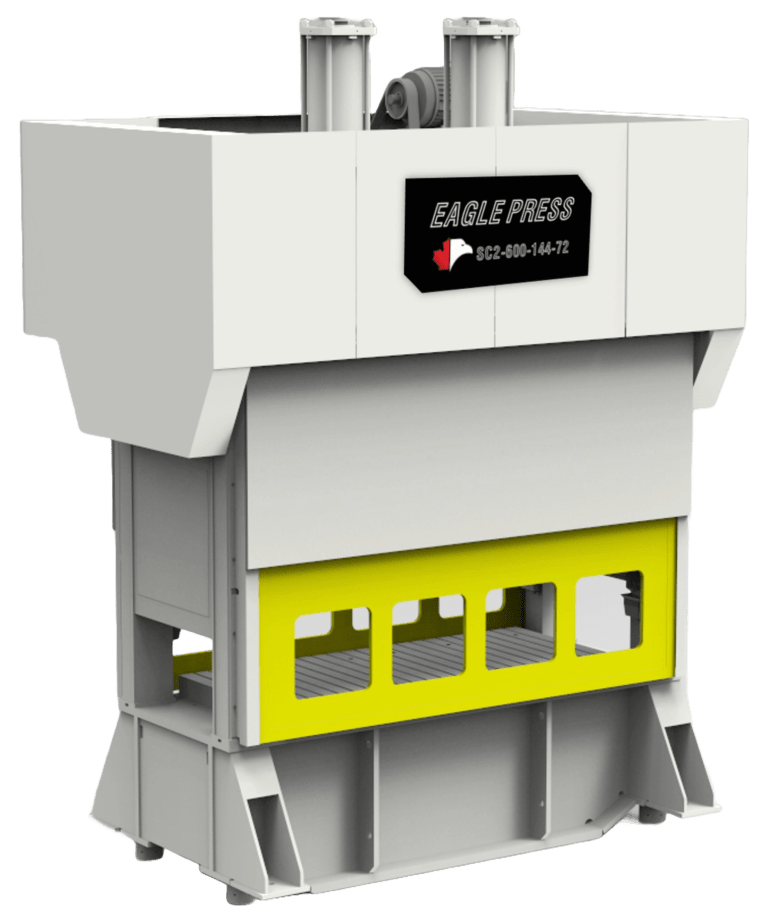

front view blueprint model of a standard press

Did you know?

Eagle Press performs Dynamic FEA simulations of all main fabrication in all of our presses, thus bringing superior quality and reliability providing extended life cycle.

Benefits of our Standard Model

Equipped with Allen Bradley safety PLC complying with CAT4 or PLE safety standards and a 15-inch HMI touch screen Eagle’s Standard 600T is user friendly and easy to interface with various auxiliary equipment’s like transfer, coil feed line, scrap conveyor, etc.

Reliability: Eagle Presses are well known for their durability and capacity to withstand high reverse tonnage, our tie rod design allows for heavy usage.
Efficiency: With a variable speed of 12 to 60 SPM on continuous mode at full crank Eagle’s standard model can produce high volume of parts in a short amount of time.
Versatility: At Eagle we understand the importance of job adaptability. With our large bed solution you will be able to produce a wide variety of products from small components to large parts.
Cost Effective: All Eagle Presses are designed for long life and high quality which translates to less maintenance time thus bringing substantial cost savings.
Short Delivery: With delivery across all North America Eagle Press is able to supply in a short time to Mexico, Canada and USA
Expertise: When purchasing an Eagle Press you are not only getting a reliable machine, but an entire team with over 60 years of experience.

Ask us about our Delivery Times

Eagle Standard Mechanical Press Models

Eagle – MAX 2

Eagle – RHINO

Eagle – MAX PLUS

Optional Items:

As North America’s Leading Custom Made Press Manufacturer, Eagle Press is able to provide tailored solutions to your process.

Uni-Directional Rolling Bolster
Bi-Directional Rolling Bolster
Tonnage Monitor
Signature Curve & Reverse Tonnage
Bearing Temperature Monitoring
knock out bars
Dynamic Braking
Scrap Provisions
Die Clamping
Light Curtains
Sound Enclosure
Vibration Isolators

Contact Eagle for more information of optional & included items.

Contact an Eagle Press representative to know more about our added services. At Eagle Press we are focused on the optimization of your process feel free to contact us to discuss your project.
