All presses below offer a very short delivery time frame.

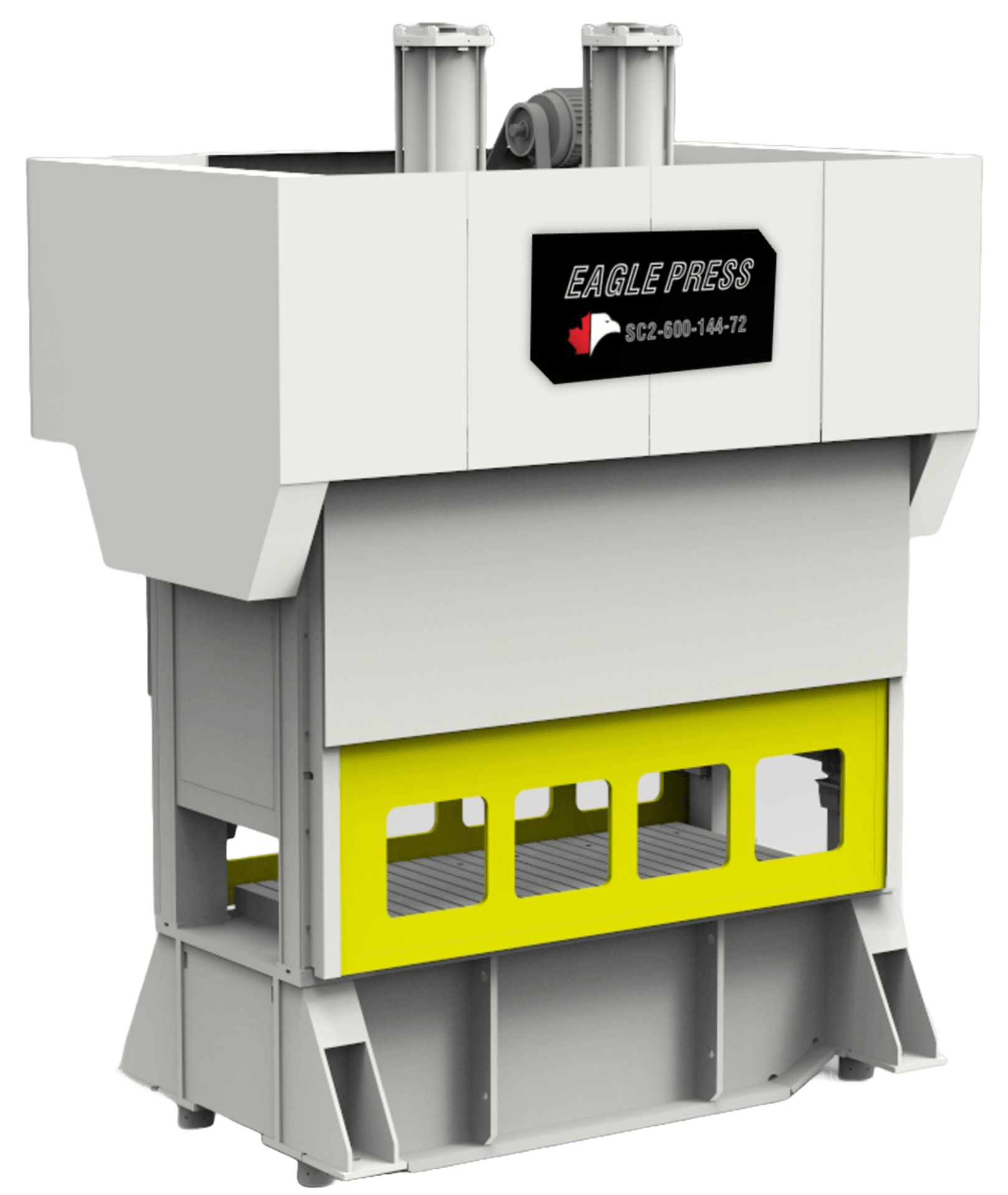

EAGLE MECHANICAL CRANKSHAFT
SC2-600T-144-72
Eagle Press Model No. SC2- 600 – 144 X 72 Mechanical Crankshaft Press
The machine structure is that of a two (2) point design with a four piece all steel frame.
Specifications:
Capacity: 600 tons @ 1/2″ A.B.D.C.
Area of slide / Bolster: 144 in. x 72 in.
Stroke of slide: 14 in.
Adjustment of slide: 12 in.
Shutheight over bolster (S.D.A.U.): 36 in.
Strokes per minute : 12-60 S.P.M.
Window Size: 51 in (F B) x 25 in (Over Bolster).
Floor to T.O.P. height: 247 in (Approx.).
Total Press height: 286 in (Approx.).
RHINO GZ 200T GAP FRAME PRESS
These machines are a “C” Configuration Press System readily available in stock. We are currently featuring our 220 US Ton Model.
Specifications:
| Capacity | 220 | ton |
| Distance Off Bottom rating | 0.24 | inch |
| Bolster R-L | 57.1 | inch |
| Bolster F-B | 33.5 | inch |
| Slide R-L | 33.1 | inch |
| Slide F-B | 25.6 | inch |
| Stroke length | 7.9 | inch |
| Shut Height | 21.7 | inch |
| Slide Adjustment | 4.7 | inch |
| Speed SPM | 25-50 | spm |
| Throat | 16.7 | inch |
- Wintriss Controller for a user-friendly interface.
- Wet Clutch & Brake for easy maintenance and service.
- Robust high-strength ribbed frame structure offers high press rigidity for demanding applications.
- Competitive pricing for a well-built, high-performance product.
- Automatic lubrication system monitored through progressive lubrication supply line.
- Hydraulically operated fast-acting overload protection.
